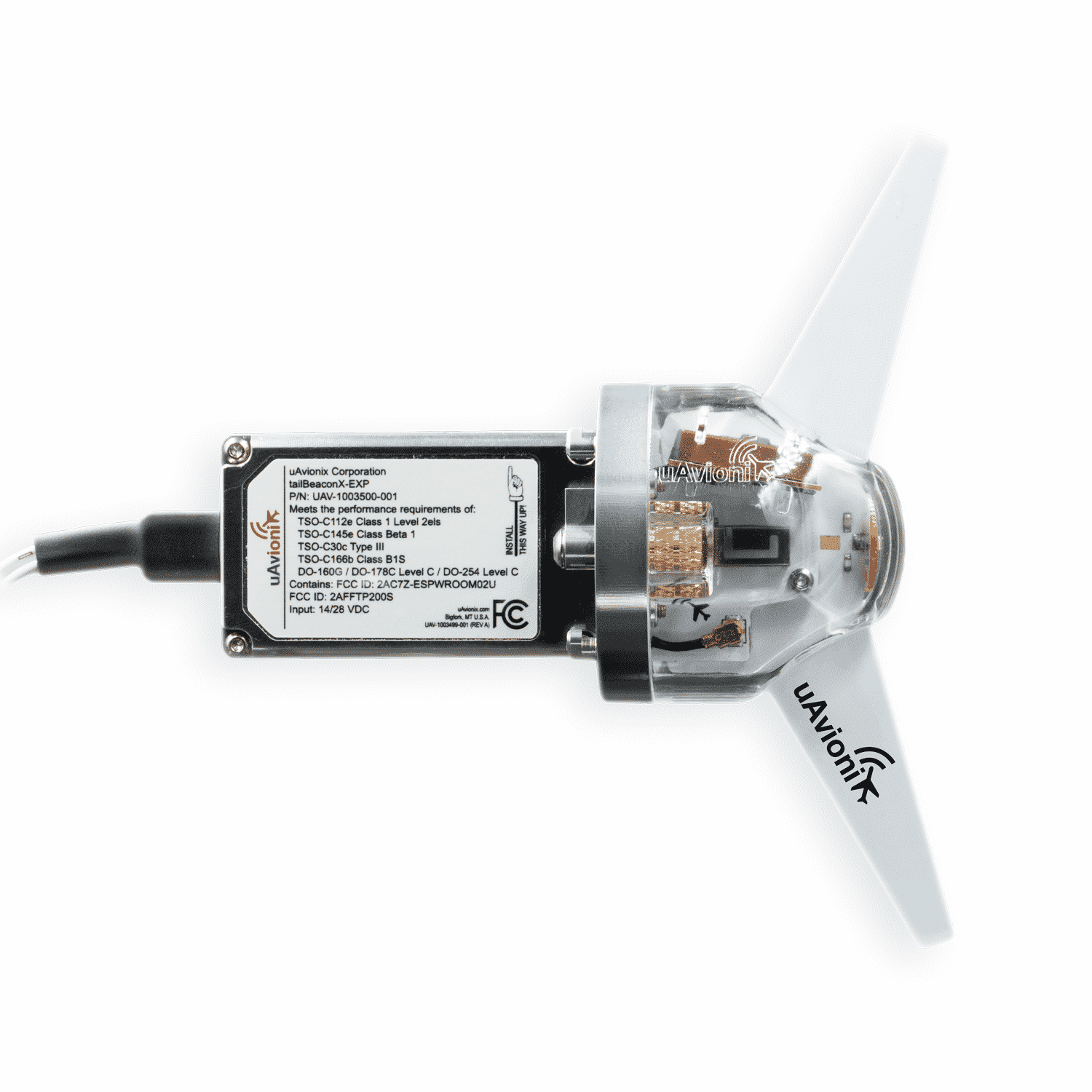

uAvionix tailBeaconX TSO ADS-B Transponder - Certified
Unit Only
Unit with AV-30-C EFIS
FREE Shipping
Overview
The next era of global ADS-B. Compatible with space and ground-based ADS-B surveillance systems, tailBeaconX is a Mode S Extended Squitter ADS-B transponder and WAAS GPS integrated into an LED rear position light. With global compliance, tailBeaconX is the key to limitless destinations.Transponder Redefined
Think Outside the AirframetailBeaconX is the world’s first transponder designed as a rear position light replacement. The 1090MHz Mode S ADS-B OUT transponder satisfies the requirements for all existing and inevitable ADS-B regulations worldwide, especially those leveraging space-based ADS-B. Fly knowing no matter your destination, tailBeaconX will keep your aircraft connected.World-Wide CoveragetailBeaconX embraces the future, providing precision ADS-B data to the Aireon satellite network without the need for diversity antennas. When it comes to terra firma, tailBeaconX also exceeds the performance of traditional panel installed transponders that use belly mount antennas.Less Ground Time - Easiest InstalltailBeaconX mounts in place of your existing rear position light. The GPS, space-based, and ground-based antennas are integrated in to the lens housing. No new holes or pentetration of pressure vessels are required making tailBeaconX the lowest-hassle easiest install period.More Than A MandateThe AV-20-E and AV-30-E have been upgraded to include transponder control functionality! The tailBeaconX combined with the AV-30-E or AV-20-E multiplies your cockpit functionality while future-proofing your ADS-B system to meet current and inevitable mandates worldwide. |
Specifications
- Physical Specifications
- Width: 42.53mm
- Height: 110.38mm
- Depth: 112.75mm
- Weight: 3.5 oz (100 grams)
- Operating Temperature Range: -45°C to +70°C
- Maximum Pressure Altitude: 60,000ft
- Input Voltage Range: 9 to 33 VDC
- 14V Current: 0.5A Max
- 28V Current: 0.25A Max
- Mode S Transponder Specifications
- Transmit Frequency: 1090 MHz
- Transmit Power: 54dBm (250W)
- Receive Frequency: 1030 MHz
- ATCRBS Sensitivity: -74 dBm
- Mode S Sensitivity: -74 dBm
- Position Light Specifications
- Color: Aviation White
- Intensity: 20 candelas
- Control Interface Specifications
- Physical: RS232
- Baudrate: 2400 bps 81N
- Protocols: UCP, SL-70, STX165R
Control Head
Control head required. tailBeaconX-can be controlled by either an EFIS or the uAvionix AV-30-C
Reviews
Nice unit. Not installed yet.
Verified Purchase
uAvionix tailBeaconX TSO All In One Nav / ADS-B Out
Hardware worked perfectly, kits are complete, remember to order sufficient 22 gauge shielded wire. Push fit pitot static lines connections on back of AV - 30 make life simple. Info is spread out in three manuals. it’s all there but takes time to digest it all to see the big picture for installing the units. Set up is software sketchy, took a few tries and some waiting for the magic to take hold but once established everything worked. I’ll purchase another unit for the DG once the wifi is approved for certified aircraft. Wish they could produce a gps for certified to feed position to radios and for traffic.
Verified Purchase
uAvionix tailBeaconX TSO And AV-30-C ADS-B Out Mfd Bundle
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No. This is an ADS-B OUT only unit and will not display anything on your tablet.
Yes, the tailBeaconX can be controlled by the AV-30-C.
For the certified version, no, it must be controlled with the AV-30-C. The experimental version of the tailbeaconX allows this.
No, it does not have that feature.
A control head is needed for the tailBeaconX. You can use the AV-30C or the a certified EFIS that is compatible with this unit.
No, there is no wiring included with this kit.
We always recommend consulting with your A&P installer for the correct paperwork to be filled out.
As of right now, the TailbeaconX is only certified to be used with the AV-30-C.
Per the manufacturer the experimental version is compatible with several EFIS displays including the Dynon Skyview. The certified version can only be controlled with the AV-30-C.
This unit does have a direct connection to both the aircraft power and the AV-30-C. If you turn off your NAV lights, that will in effect turn off the ADS-B. The lights need to remain on during flight for ADS-B Out Compliance.
